• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 218282
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: H511F Consoltone - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 14 x 7 x 6 inch / 356 x 178 x 152 mm
  • Notes

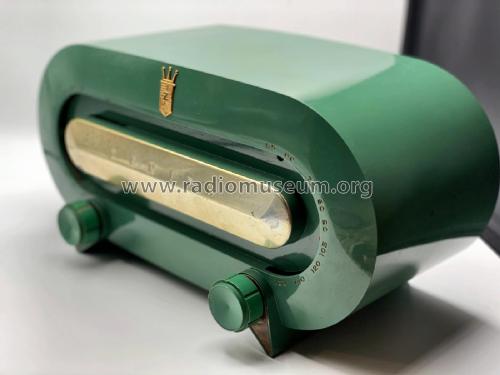

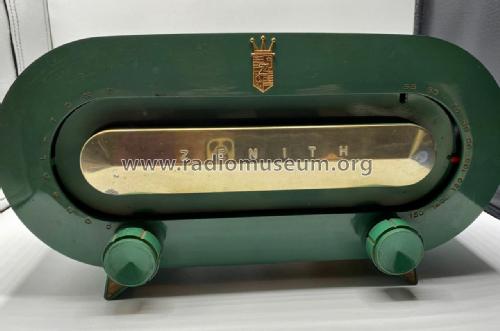

  • Zenith AM Table Top 5 Tube Radio Model Consol-Tone H-511F.
    Color: green.
  • Net weight (2.2 lb = 1 kg)
  • 5 lb 0 oz (5 lb) / 2.270 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
