D2350H, M, R, W, HU, MU, RU, WU Ch= 16D21, U

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1959/1960
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 134350
    • alternative name: Chicago Radio Lab

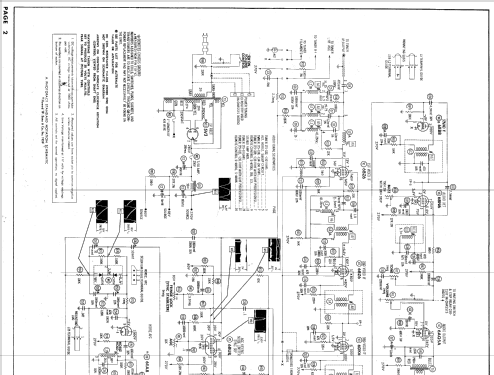

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: D2350H, M, R, W, HU, MU, RU, WU Ch= 16D21, U - Zenith Radio Corp.; Chicago,
  • Shape
  • Console with any shape - in general
  • Notes
  • ~21" b/w TV with US standard VHF "Target Turret" tuner. An additional suffix "U" stands for factory equipped with continuous UHF tuner. Exactly tube quantity unknown.
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
