For model D2460M, R, MU, RU Ch= 17D20, U, Zenith Radio Corp.; Chicago, IL:
Copy from Zenith Folder

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959/1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 21CXP4
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: D2460M, R, MU, RU Ch= 17D20, U - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes ~21" b/w Television Receiver, Picture tube: 21CXP4, an additional Sufffix "U" stands for factory equipped with continuous UHF tuner, tube quantity UHF: 18.
Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
Source of data -- Original-techn. papers.

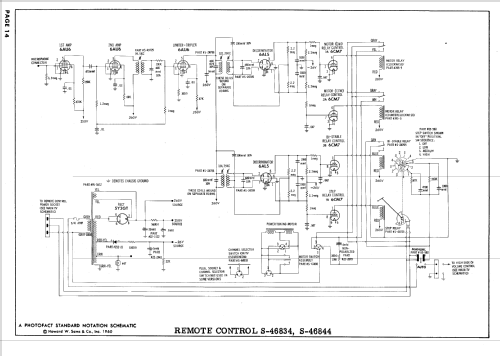

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-60, Set 469, Folder 2)

Model page created by a member from A. See "Data change" for further contributors.
