E266W ; Zenith Radio Corp.; (ID = 2153910) Radio
Zenith Radio Corp.;: E266W [Radio] ID = 2153910 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model E266W, Zenith Radio Corp.; Chicago, IL:

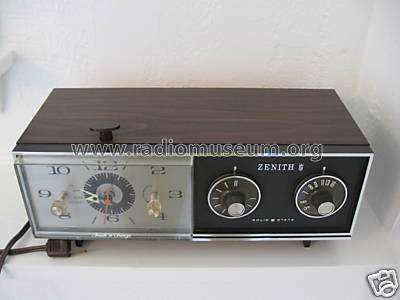

USA_Zenith radio model E266W. Copy from Ebay seller diddleberg.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1973 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.75 W (unknown quality)
from Radiomuseum.org Model: E266W - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

The Zenith model E266W is an AC operated 4 transistor AM clock radio. AM Tuning Range: 540 to 1600 KHz. Uses Autodyne converter.

Made in Hong Kong

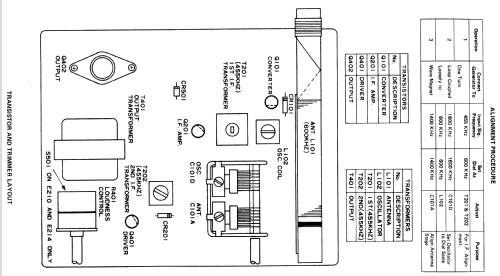

Literature/Schematics (1) - - Manufacturers Literature (Zenith Datasheet RA-40 (923-723))

Model page created by John Kusching. See "Data change" for further contributors.
