• Year
  • 1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 141065
    • alternative name: Chicago Radio Lab

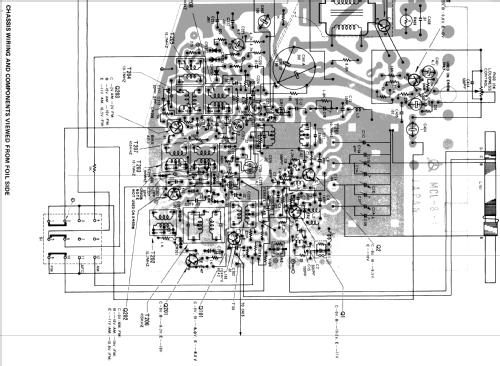

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.75 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: E 412W - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • The Zenith model E 412W is a 50/60Hz AC operated 8 transistor AM/FM radio with "Flower Power" speaker grill. AM Tuning Range: 540 to 1600 kHz. FM Tuning Range: 88 to 108 MHz. Has Qty(1) PM Elliptical 3" x 5" speaker. Cabinet color is White.

    Made in Korea

  • Source of data
  • -- Collector info (Sammler)

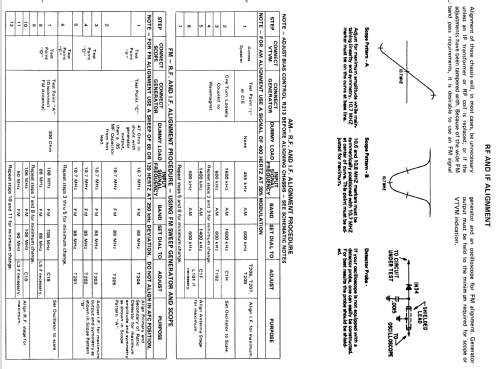

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Zenith Datasheet RA-49)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
