• Year
  • 1961 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 315258
    • alternative name: Chicago Radio Lab

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

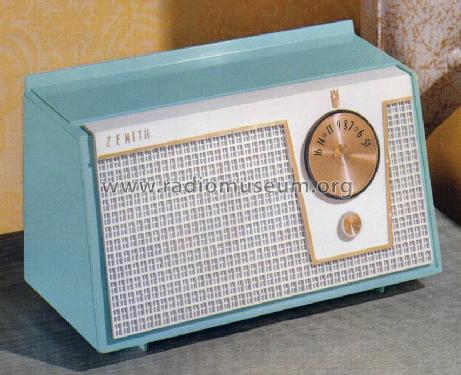

  • Model: F510B Ch= 5F10 - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 12 x 6.5 x 6 inch / 305 x 165 x 152 mm
  • Notes
  • The following models are identical except for cabinet color.

    Model Number Cabinet Color
    F510B Blue
    F510C Charcoal
    F510F Green
    F510L Tan



  • Author
  • Model page created by David Erali. See "Data change" for further contributors.
