Filter unit ZE6

Filter unit ZE6; Zenith Radio Corp.; (ID = 531309) Power-S
Filter unit ZE6; Zenith Radio Corp.; (ID = 2389436) Power-S Filter unit ZE6; Zenith Radio Corp.; (ID = 2389437) Power-S
Use red slider bar for more.
Filter unit ZE6; Zenith Radio Corp.; (ID = 2389436) Power-S

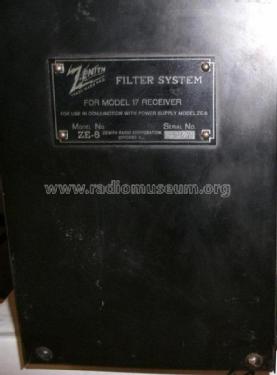

Zenith Radio Corp.;: Filter unit ZE6 [Power-S] ID = 2389436 597x806
Select picture or schematic to display from thumbnails on the right and click for download.
For model Filter unit ZE6, Zenith Radio Corp.; Chicago, IL:
Copy from Allan Larsen image.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1930 ?? Category: Power supply/conditioner or battery or charger
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Filter unit ZE6 - Zenith Radio Corp.; Chicago,
Notes Filter unit for Power Supply ZE5 for Model 17 Receiver;
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Literature/Schematics (1) Rider´s vol.1
