G402W Ch= 4G41

G402W Ch= 4G41; Zenith Radio Corp.; (ID = 241222) Radio

G402W Ch= 4G41; Zenith Radio Corp.; (ID = 241223) Radio

G402W Ch= 4G41; Zenith Radio Corp.; (ID = 241224) Radio

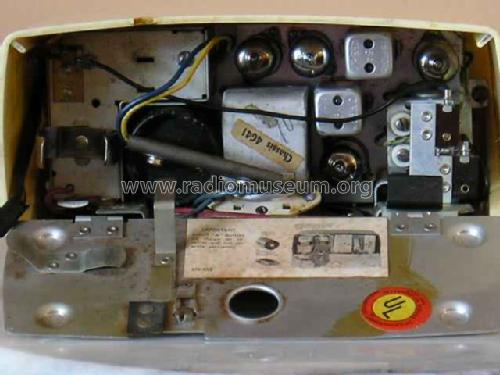

G402W Ch= 4G41; Zenith Radio Corp.; (ID = 232230) Radio G402W Ch= 4G41; Zenith Radio Corp.; (ID = 322990) Radio
G402W Ch= 4G41; Zenith Radio Corp.; (ID = 322991) Radio
Use red slider bar for more.
G402W Ch= 4G41; Zenith Radio Corp.; (ID = 232230) Radio
Zenith Radio Corp.;: G402W Ch= 4G41 [Radio] ID = 232230 300x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model G402W Ch= 4G41, Zenith Radio Corp.; Chicago, IL:
G-402W (Ch=4G41) 1952 Ebay seller dollys-treasures

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1S5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / (1.5; 67.5); AC/DC 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: G402W Ch= 4G41 - Zenith Radio Corp.; Chicago,
Shape Portable set > 8 inch (also usable without mains)
Notes ivory color; Selenium Rectifier.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
