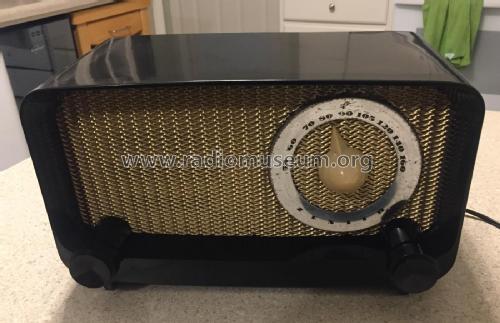

Zenith Radio Corp.;: G510 Ch= 5G02 [Radio] ID = 2444719 1400x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model G510 Ch= 5G02, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50L6GT 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: G510 Ch= 5G02 - Zenith Radio Corp.; Chicago,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Notes

Bakelite with metal grille.

Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Machine Age to Jet Age II (page 327.)
