G515B Ch= 5G06
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303617
-
- alternative name: Chicago Radio Lab

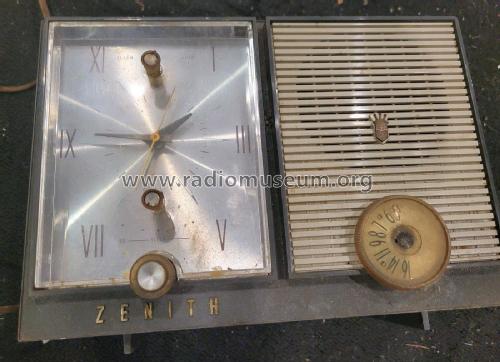

Picture from Scott Strauss
Picture from Scott Strauss
Picture from Scott Strauss
eBay item number:194240996103
eBay item number:194240996103
eBay item number:194240996103
eBay item number:194240996103
eBay item number:194240996103
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz; 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: G515B Ch= 5G06 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Other identical model with this chassis include G515C, G515P, and G515W. The only difference is the cabinet color.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 665, Folder 13, November 1963)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
