H091J4

H091J4 ; Zenith Radio Corp.; (ID = 2286342) Television
Use red slider bar for more.
H091J4 ; Zenith Radio Corp.; (ID = 2286342) Television

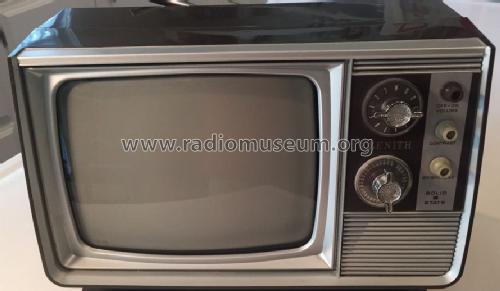

Zenith Radio Corp.;: H091J4 [Television] ID = 2286342 890x519
Select picture or schematic to display from thumbnails on the right and click for download.
For model H091J4, Zenith Radio Corp.; Chicago, IL:
Copy from Ebay seller lloyd_artifacts_ny.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1975 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: H091J4 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Zenith H091J4; 9" b/w TV with US standard VHF turret & UHF dial tuner, brown cabinet.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
