H2352RZ Ch= 23H22Z
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 339531
-
- alternative name: Chicago Radio Lab
Copy from Zenith catalog.

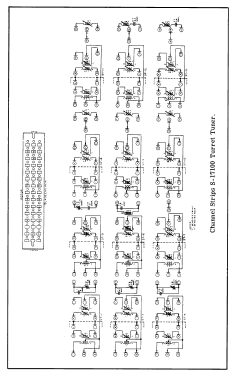

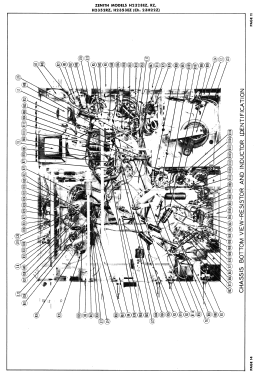

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6CB6 6CB6 6C4 6AU6 6AU6 6AU6 6AU6 12AT7 6SN7GT 12AU7 6BN6 6BF5 6BN6 6BL7GT 6AL5 6SN7GT 6BQ6GT 6BQ6GT 6W4GT 1X2 5Y3GT 5U4G 16TP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: H2352RZ Ch= 23H22Z - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Zenith model H2352RZ is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 23H22Z, VHF tuner S-17100 and picture tube 16TP4. Error in parts list, tube V12 has to be 6BF5 .
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 111 Folder 1A dated 1950)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 118, Folder 11 dated 12-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 4491 models, 4096 with images and 3595 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
