H503 Ch= 5H41; Zenith Radio Corp.; (ID = 93859) Radio
Zenith Radio Corp.;: H503 Ch= 5H41 [Radio] ID = 93859 332x400
Select picture or schematic to display from thumbnails on the right and click for download.

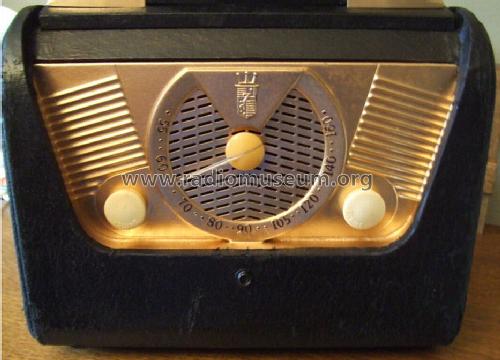

For model H503 Ch= 5H41, Zenith Radio Corp.; Chicago, IL:

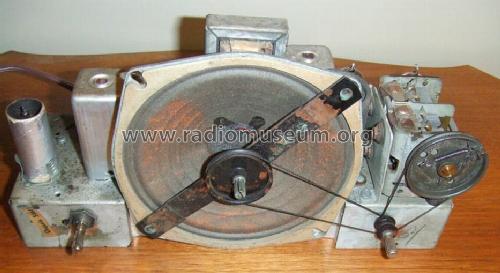

Zenith H-503(Ch=5H41)1951 open-view copy from Ebay seller jeannieweanie

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1U4 1L6 1U4 1S5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: H503 Ch= 5H41 - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 280 x 160 mm / 13.8 x 11 x 6.3 inch
Notes Selenium Rectifier. Battery Z509 needed.
Net weight (2.2 lb = 1 kg) 4.650 kg / 10 lb 3.9 oz (10.242 lb)
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

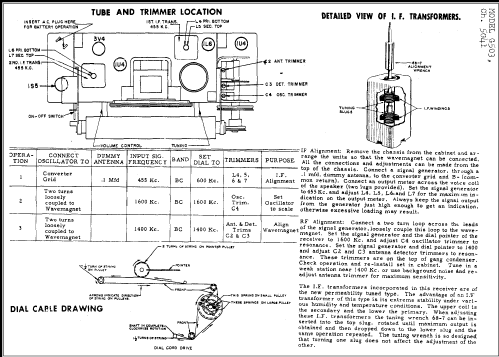

Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 12, 1952
