H880R (with Cobra-Matic player) Ch= 8H20 Revised

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1951 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
68235

- alternative name: Chicago Radio Lab

Schematics

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887389) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887390) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887391) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887392) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887393) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887394) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887395) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

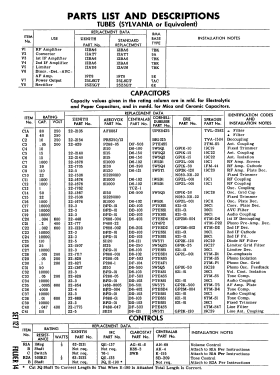

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 2887396) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

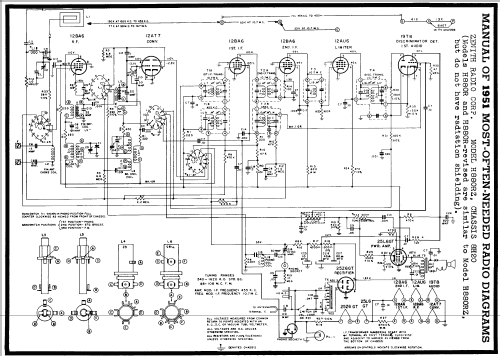

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 121307) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)
Beitman

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 121308) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)
Beitman

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 260799) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)
Rider

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 260801) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)
Rider

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 260802) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 260803) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 260804) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (3)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 161682) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (2)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 161678) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (2)
H-880R (Ch=8H20) Ebay seller unisale

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 161683) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (2)
H-880R (Ch=8H20)dial-viewEbay seller unisale

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 161679) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (2)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 161680) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (2)

H880R Ch= 8H20; Zenith Radio Corp.; (ID = 161681) Radio — Zenith Radio Corp.; H880R Ch= 8H20 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
8

Valves / Tubes
12BA6 12AT7 12BA6 12BA6 12AU6 19T8 25L6GT 25Z6GT

Main principle
Superhet with RF-stage; ZF/IF 455/10700 kHz

Tuned circuits
7 AM circuit(s) 9 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Material
Wooden case

from Radiomuseum.org
Model: H880R Ch= 8H20 [Revised] - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes
Zenith model H880R is an AC operated combination phono-radio, AM-FM superheterodyne receiver with loop antenna. With 2.5 MHz oscillator for Cobra pickup.

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 21, Copyright 1950

Literature/Schematics (1)
Beitman Radio Diagrams, Vol. 11, 1951

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 127 Folder 14 dated 3-51)
