H-615-Z-P Ch= 6-G-05
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174280
-
- alternative name: Chicago Radio Lab
RECONSTRUCTED LABEL
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-125 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: H-615-Z-P Ch= 6-G-05 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes

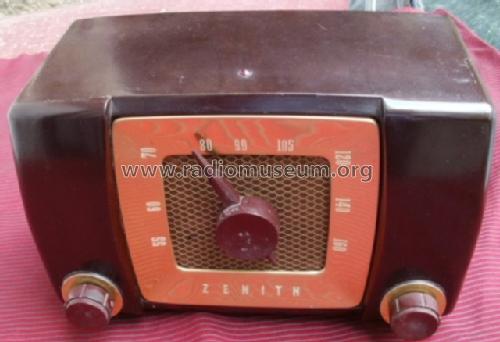

- This model, the Zenith H-615-Z-P, has no handle on top. It looks similar to the H-615-Z, difference as yet unknown.
- Source of data
- Antique Radios, Johnson 1986
