J504 Ch= 5J41

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1953 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
196048

- alternative name: Chicago Radio Lab

Schematics

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 3211816) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 3211817) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 3211818) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 3211819) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

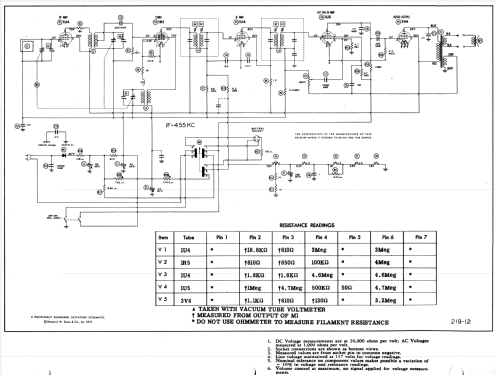

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 978659) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 978665) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 978667) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 978661) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (3)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631165) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631169) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631166) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)
Another view of the front escutcheon.

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631167) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631168) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631170) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631171) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 2631173) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488619) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 980535) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (2)
Source Sams Photofact

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1385870) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488617) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488621) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488622) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488624) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488625) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488627) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488629) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488630) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 1488632) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (1)

J504 Ch= 5J41; Zenith Radio Corp.; (ID = 3211815) Radio — Zenith Radio Corp.; J504 Ch= 5J41 (2)
Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
1U4 1R5 1U4 1U5 3V4

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Line / Batteries (any type) / AC/DC 117=110-120 / 9 & 90 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: J504 Ch= 5J41 - Zenith Radio Corp.; Chicago,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Notes
Zenith model J504 is a three power portable AM superheterodyne receiver.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 219, folder 12, dated 10-53)

Author
Model page created by Richard Watts. See "Data change" for further contributors.
