J615 Ch= 6J05

Zenith Radio Corp.; Chicago, IL

Données

Forum

Images

Collections

Pays
Etats-Unis

Fabricant / Marque
Zenith Radio Corp.; Chicago, IL

Année
1952 ?

Catégorie
Radio - ou tuner d'après la guerre 1939-45

Radiomuseum.org ID
73530

- alternative name: Chicago Radio Lab

Images
Schémas

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 3099164) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 3099165) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 3099166) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 3099167) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 151024) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)
Beitman

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 902704) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 902705) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 902706) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 902707) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (3)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 72055) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 235901) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 235897) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 235898) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 235899) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 235900) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 765202) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 765203) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 765204) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 765205) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1391237) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1391238) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1391239) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1391240) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1391241) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1391242) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (2)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1769861) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1769862) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1769866) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1769868) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1769869) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1825044) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)
American Radio Design Greg Mercurio

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1825045) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)
American Radio Design Greg Mercurio

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1825046) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)
American Radio Design Greg Mercurio

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1825047) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)
American Radio Design Greg Mercurio

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1971370) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

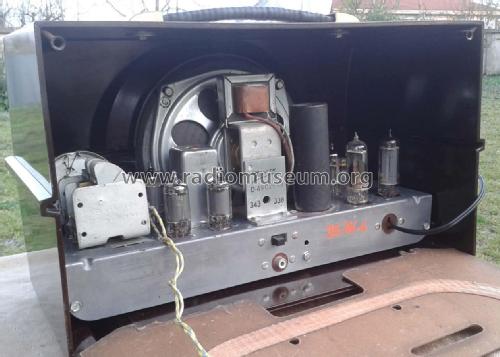

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1971372) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1971373) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1971374) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

J615 Ch= 6J05; Zenith Radio Corp.; (ID = 1971375) Radio — Zenith Radio Corp.; J615 Ch= 6J05 (1)

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

Spécifications techniques

No. de tubes
6

Lampes / Tubes
6BJ6 12BE6 6BJ6 12AT6 35L6GT 35W4 or 35Z5GT

Principe général
Super hétérodyne avec étage HF; FI/IF 455 kHz; 2 Etage(s) BF

Circuits accordés
7 Circuits MA (AM)

Gammes d'ondes
PO uniquement

Tension / type courant
Appareil tous courants (CA / CC) / AC/DC 117V =110-120 Volt

Haut-parleur
HP dynamique à aimant permanent + bobine mobile / Ø 5.25 inch = 13.3 cm

Matière
Plastique moderne (pas de bakélite, ni de catalin)

De Radiomuseum.org
Modèle: J615 Ch= 6J05 - Zenith Radio Corp.; Chicago,

Forme
Modèle de table générique

Dimensions (LHP)
13 x 8 x 7 inch / 330 x 203 x 178 mm

Remarques
Zenith model J615 is an AC-DC operated AM superheterodyne receiver with phono provisions. Color = walnut. Sam´s 182-16.

Source
Collector's Guide to Antique Radios 4. Edition

Schémathèque (1)
Beitman Radio Diagrams, Vol. 12, 1952

Schémathèque (2)
Photofact Folder, Howard W. SAMS (Set 182, folder 16, dated 10-52)

Auteur
Modèle crée par Konrad Birkner † 12.08.2014. Voir les propositions de modification pour les contributeurs supplémentaires.

D'autres Modèles
Vous pourrez trouver sous ce lien 4517 modèles d'appareils, 4108 avec des images et 3646 avec des schémas.
Tous les appareils de Zenith Radio Corp.; Chicago, IL

Collections | Musées | Littérature

Collections

Le modèle J615 fait partie des collections des membres suivants.

Forum
