K412R "Owl Eye" Ch= 4K01

K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 185466) Radio

K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 505585) Radio

K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 505586) Radio

K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 505587) Radio

K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 505588) Radio
K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 233124) Radio K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 233125) Radio
K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 233126) Radio K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 233127) Radio
K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 711365) Radio K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 1204543) Radio
K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 1204544) Radio K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 1204545) Radio
K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 1204546) Radio K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 1204548) Radio
Use red slider bar for more.
K412R 'Owl Eye' Ch= 4K01; Zenith Radio Corp.; (ID = 233124) Radio
Zenith Radio Corp.;: K412R "Owl Eye" Ch= 4K01 [Radio] ID = 233124 787x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model K412R 'Owl Eye' Ch= 4K01, Zenith Radio Corp.; Chicago, IL:

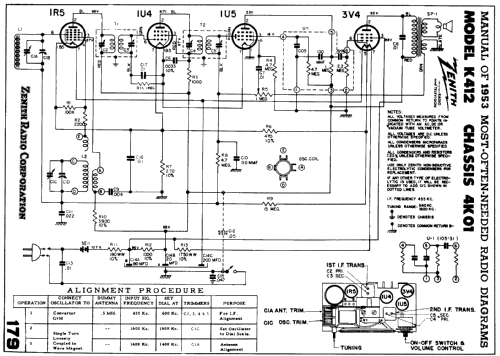

K-412R (CH=4K01) 1953 Image with courtesy from Jim Burks

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: K412R "Owl Eye" Ch= 4K01 - Zenith Radio Corp.; Chicago,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 170 x 110 x 100 mm / 6.7 x 4.3 x 3.9 inch
Notes

Selenium Rectifier
The Zenith Modell K412R is an AC/DC Operated 4 Tube AM Superheterodyne Receiver.

Bakelite with metal trim, available in different colors.

Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 175.)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 2-53, Set 195, Folder 13)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
