- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1963 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 138000
-
- alternative name: Chicago Radio Lab
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5.25 inch = 13.3 cm
- from Radiomuseum.org
- Model: KPS45L - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Zenith Modell KPS45L is a AC Operated 2 Tube Phono Amplifier with 2 Speed Automatic Record Changer.
Diode Rectifier.
- Literature/Schematics (1)

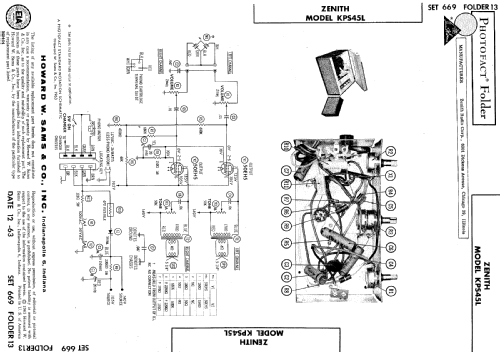

- Photofact Folder, Howard W. SAMS (Date 12-63 Set 669, Folder 13)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
