KPS-80

KPS-80 ; Zenith Radio Corp.; (ID = 155052) R-Player
KPS-80 ; Zenith Radio Corp.; (ID = 274835) R-Player KPS-80 ; Zenith Radio Corp.; (ID = 274836) R-Player
KPS-80 ; Zenith Radio Corp.; (ID = 274837) R-Player KPS-80 ; Zenith Radio Corp.; (ID = 274838) R-Player

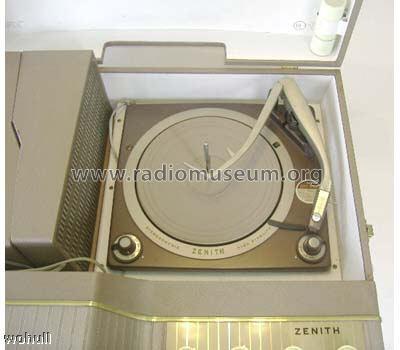

KPS-80 ; Zenith Radio Corp.; (ID = 274839) R-Player
Use red slider bar for more.
KPS-80 ; Zenith Radio Corp.; (ID = 274835) R-Player
Zenith Radio Corp.;: KPS-80 [R-Player] ID = 274835 400x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model KPS-80, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1963 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 12AX7 6AQ5 6AQ5 6X4
Main principle Audio-Amplification
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: KPS-80 - Zenith Radio Corp.; Chicago,
Circuit diagram reference Beitman Radio Diagrams Vol. 23, 1963

Model page created by Egon Penker. See "Data change" for further contributors.
