L403G Ch= 4L41; Zenith Radio Corp.; (ID = 232382) Radio
Zenith Radio Corp.;: L403G Ch= 4L41 [Radio] ID = 232382 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model L403G Ch= 4L41, Zenith Radio Corp.; Chicago, IL:

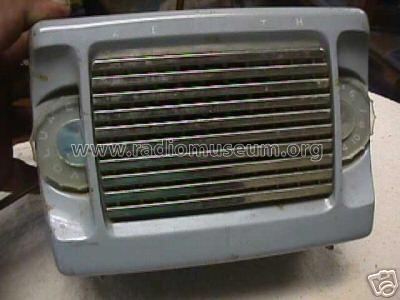

L-403G (Ch=4L41) 1953 Image from Ebay seller bigbutch55

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / (1.5; 67.5); AC/DC 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.25 inch = 8.3 cm
Power out
from Radiomuseum.org Model: L403G Ch= 4L41 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Color=Gray.
External source of data Ernst Erb
Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
