L520R Ch= 5L07

L520R Ch= 5L07; Zenith Radio Corp.; (ID = 62144) Radio

L520R Ch= 5L07; Zenith Radio Corp.; (ID = 985186) Radio

L520R Ch= 5L07; Zenith Radio Corp.; (ID = 985187) Radio

L520R Ch= 5L07; Zenith Radio Corp.; (ID = 985188) Radio

L520R Ch= 5L07; Zenith Radio Corp.; (ID = 985189) Radio
L520R Ch= 5L07; Zenith Radio Corp.; (ID = 2393340) Radio L520R Ch= 5L07; Zenith Radio Corp.; (ID = 2393339) Radio
L520R Ch= 5L07; Zenith Radio Corp.; (ID = 1510540) Radio L520R Ch= 5L07; Zenith Radio Corp.; (ID = 122087) Radio
L520R Ch= 5L07; Zenith Radio Corp.; (ID = 122088) Radio L520R Ch= 5L07; Zenith Radio Corp.; (ID = 1510541) Radio
L520R Ch= 5L07; Zenith Radio Corp.; (ID = 1510543) Radio L520R Ch= 5L07; Zenith Radio Corp.; (ID = 1510544) Radio
L520R Ch= 5L07; Zenith Radio Corp.; (ID = 1510545) Radio L520R Ch= 5L07; Zenith Radio Corp.; (ID = 1510546) Radio
Use red slider bar for more.
L520R Ch= 5L07; Zenith Radio Corp.; (ID = 2393340) Radio

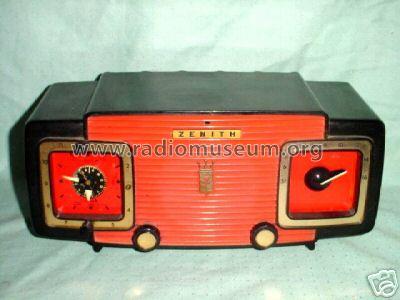

Zenith Radio Corp.;: L520R Ch= 5L07 [Radio] ID = 2393340 1400x711
Select picture or schematic to display from thumbnails on the right and click for download.
For model L520R Ch= 5L07, Zenith Radio Corp.; Chicago, IL:
ZenithClockL520R-5L07

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: L520R Ch= 5L07 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)

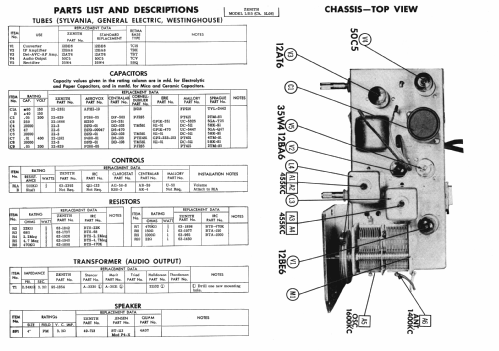

Circuit diagram reference Beitman Radio Diagrams Vol. 14, 1954
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
