L723W Ch= 7L04

L723W Ch= 7L04; Zenith Radio Corp.; (ID = 155646) Radio
L723W Ch= 7L04; Zenith Radio Corp.; (ID = 218283) Radio L723W Ch= 7L04; Zenith Radio Corp.; (ID = 218284) Radio
L723W Ch= 7L04; Zenith Radio Corp.; (ID = 1721815) Radio L723W Ch= 7L04; Zenith Radio Corp.; (ID = 1721816) Radio
L723W Ch= 7L04; Zenith Radio Corp.; (ID = 1721817) Radio L723W Ch= 7L04; Zenith Radio Corp.; (ID = 1721818) Radio
L723W Ch= 7L04; Zenith Radio Corp.; (ID = 1721819) Radio L723W Ch= 7L04; Zenith Radio Corp.; (ID = 1721820) Radio
Use red slider bar for more.
L723W Ch= 7L04; Zenith Radio Corp.; (ID = 218283) Radio

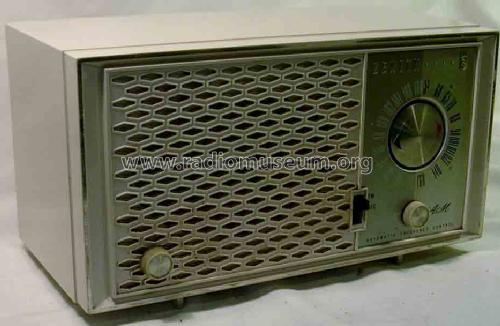

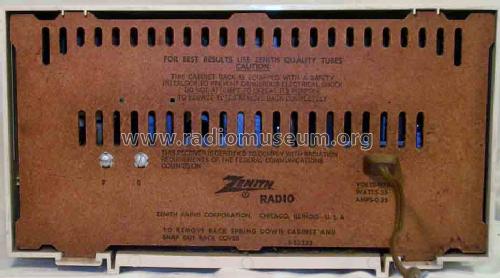

Zenith Radio Corp.;: L723W Ch= 7L04 [Radio] ID = 218283 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model L723W Ch= 7L04, Zenith Radio Corp.; Chicago, IL:
L-723W Ebay seller jammmtea

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12DT8 12BE6 12BA6 12BA6 12AU6 19T8 50C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: L723W Ch= 7L04 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Silicon Rectifier.
Circuit diagram reference Beitman Radio Diagrams Vol. 24, 1964

Model page created by Egon Penker. See "Data change" for further contributors.
