• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77501

• • alternative name: Chicago Radio Lab

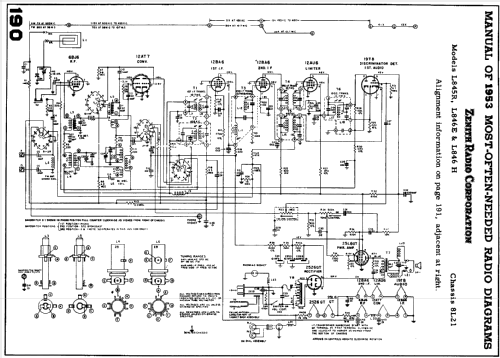

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BJ6 12AT7 12BA6 12BA6 12AU6 19T8 25L6GT 25Z6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: L845R Ch= 8L21 - Zenith Radio Corp.; Chicago,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 20 x 22 x 31 inch / 508 x 559 x 787 mm

• Notes

• Zenith 8 Tube Radio-Phonograph Combo Model L845R.

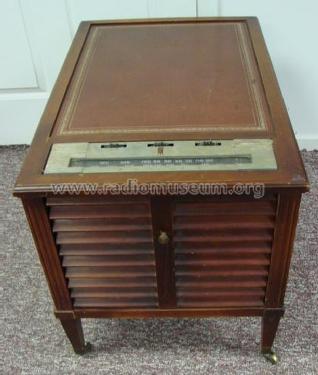

  Built as a charside console. The cabinet has a leatherette table top and stands upon four tapered legs with castors on them.

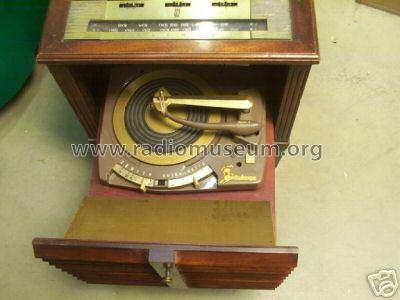

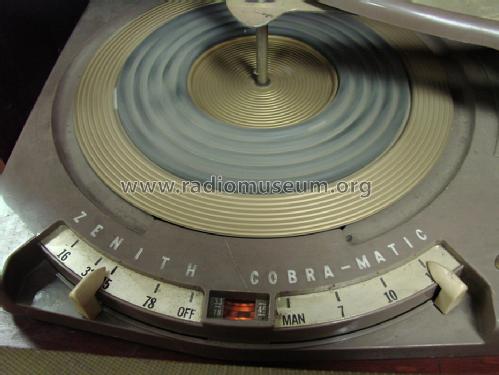

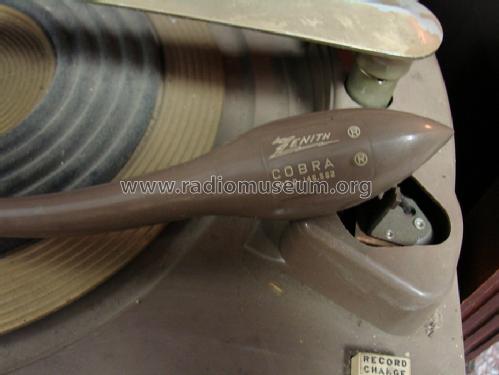

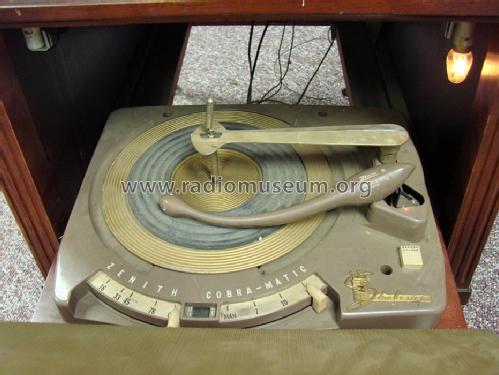

  Pullout drawer with the Zenith Cobra-Matic Phonograph.

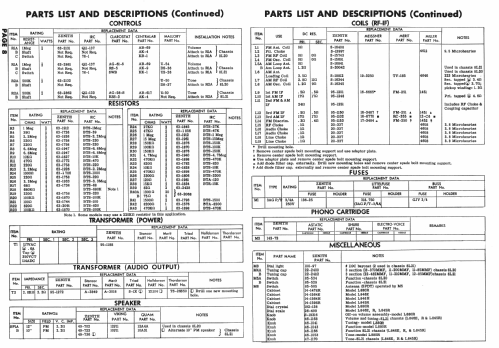

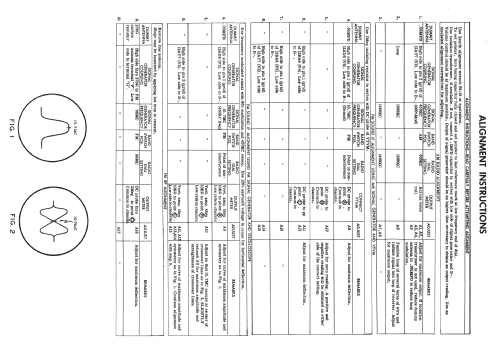

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 13, 1953 (.)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
