• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306328

• • alternative name: Chicago Radio Lab

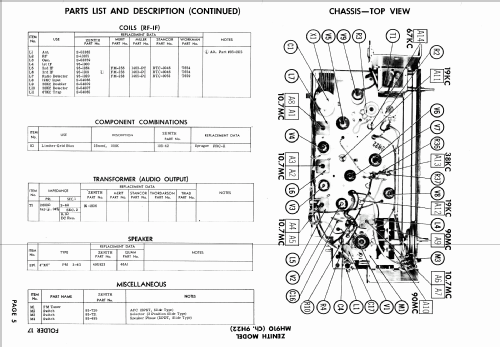

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12DT8 6BJ6 6BJ6 12AU6 14GT8 14GT8 12AU6 6AB4 35C5

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: MH910 Ch= 9H22 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 637, Folder 17)

• Author
• Model page created by Dennis Wesserling. See "Data change" for further contributors.
