Multiceiver MC-3

Multiceiver MC-3; Zenith Radio Corp.; (ID = 643920) Radio Multiceiver MC-3; Zenith Radio Corp.; (ID = 962046) Radio
Multiceiver MC-3; Zenith Radio Corp.; (ID = 962047) Radio Multiceiver MC-3; Zenith Radio Corp.; (ID = 1177882) Radio
Multiceiver MC-3; Zenith Radio Corp.; (ID = 1177883) Radio Multiceiver MC-3; Zenith Radio Corp.; (ID = 1266174) Radio
Use red slider bar for more.
Multiceiver MC-3; Zenith Radio Corp.; (ID = 643920) Radio
Zenith Radio Corp.;: Multiceiver MC-3 [Radio] ID = 643920 340x256
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multiceiver MC-3, Zenith Radio Corp.; Chicago, IL:

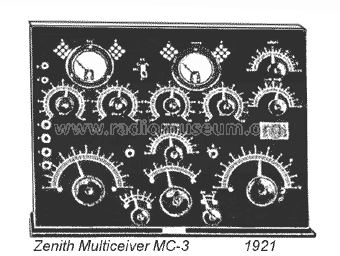

touched up and partially redrawn from an ad. see also Cones/Bryant

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1921 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UV200 or VT-Class-I or B_Moorhead-Shaw UV201 or VT-Class-II or A_Moorhead UV201 or VT-Class-II or A_Moorhead UV201 or VT-Class-II or A_Moorhead
Main principle TRF with regeneration; 3 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Multiceiver MC-3 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Tunes 180 - 600 metres. Has two white panel meters. The illustration legend in Cones, p.46 has mixed up Altaceiver and Multiceiver. Only the Multiceiver has panel meters. See Cones p.30.
The Multiceiver has two special jacks to allow the use of two long wave honey comb coils to convert the set into a long wave undamped set.
Price in first year of sale 236.00 $
Mentioned in Zenith Radio The Early Years 1919-1935 (pp.30, 46, 174)

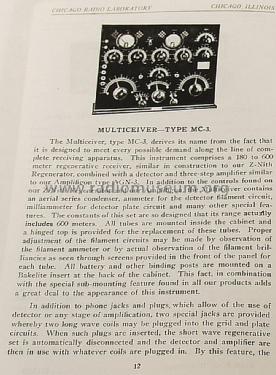

Literature/Schematics (4) 1921 Chicago Radio Laboratories Bulletin F-21 page 12

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
