One Step Amplifier Type AMP-1

One Step Amplifier Type AMP-1; Zenith Radio Corp.; (ID = 1178959) Ampl/Mixer
Use red slider bar for more.
One Step Amplifier Type AMP-1; Zenith Radio Corp.; (ID = 1178959) Ampl/Mixer
Zenith Radio Corp.;: One Step Amplifier Type AMP-1 [Ampl/Mixer] ID = 1178959 933x694
Select picture or schematic to display from thumbnails on the right and click for download.
For model One Step Amplifier Type AMP-1, Zenith Radio Corp.; Chicago, IL:

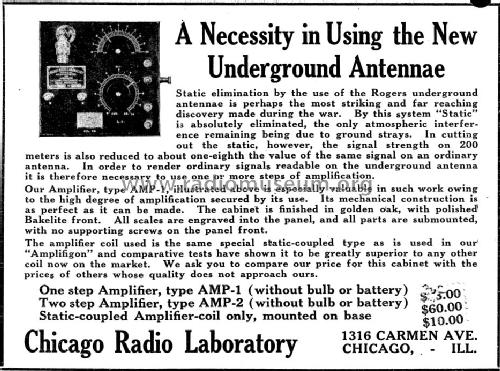

August 1919 QST magazine Chicago Radio Laboratories advertisement page 44

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1919 Category: Audio Amplifier or -mixer
Valves / Tubes 1: Audion_dbw
Main principle Audio-Amplification; 1 AF stage(s)
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: One Step Amplifier Type AMP-1 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Pre-Zenith Chicago Radio Laboratory One-Step Amplifier Type AMP-1
Price in first year of sale 33.00 $
Literature/Schematics (1) August 1919 QST magazine page 44

Model page created by Alan Larsen. See "Data change" for further contributors.
