Portable Receiver Type PR-1

Portable Receiver Type PR-1; Zenith Radio Corp.; (ID = 1376648) Radio Portable Receiver Type PR-1; Zenith Radio Corp.; (ID = 1376649) Radio
Use red slider bar for more.

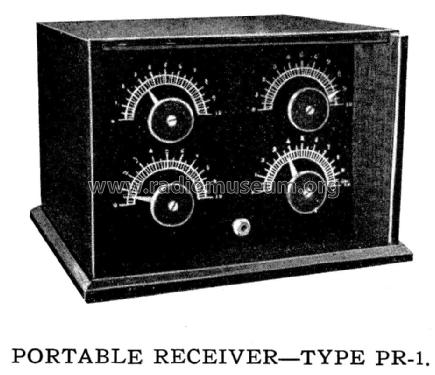

Portable Receiver Type PR-1; Zenith Radio Corp.; (ID = 1376648) Radio
Zenith Radio Corp.;: Portable Receiver Type PR-1 [Radio] ID = 1376648 933x803
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Receiver Type PR-1, Zenith Radio Corp.; Chicago, IL:
1919/1920 Chicago Radio Laboratories catalog page 15

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1919/1920 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: VT-Class-I or B_Moorhead-Shaw
Main principle TRF with regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 6 & 45 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Portable Receiver Type PR-1 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Chicago Radio Laboratories Type PR-1 Portable Receiver

Set was sold for $60 with both a 6 V 10 Ah storage "A" battery and a Radisco 45 Volt "B" battery installed in the case.

Net weight (2.2 lb = 1 kg) 35 lb (35 lb 0 oz) / 15.890 kg
Price in first year of sale 60.00 USD
Literature/Schematics (1) 1919/1920 Chicago Radio Laboratories catalog page 15

Model page created by Alan Larsen. See "Data change" for further contributors.
