Power Unit ZE17

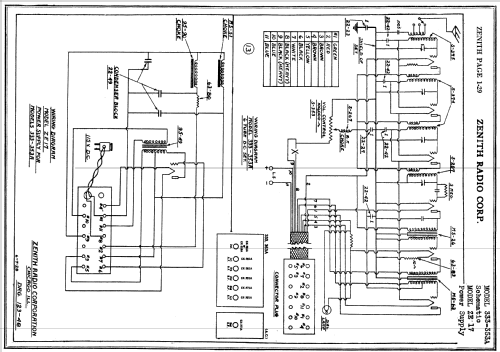

Power Unit ZE17; Zenith Radio Corp.; (ID = 770634) Power-S
Power Unit ZE17; Zenith Radio Corp.; (ID = 720025) Power-S
Use red slider bar for more.
Power Unit ZE17; Zenith Radio Corp.; (ID = 720025) Power-S
Zenith Radio Corp.;: Power Unit ZE17 [Power-S] ID = 720025 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Unit ZE17, Zenith Radio Corp.; Chicago, IL:
Zenith ZE-17 bulit in model 333. Image shows back from model 333.ZE-17 see on left.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1928/1929 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: 71
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Power Unit ZE17 - Zenith Radio Corp.; Chicago,
Material Metal case
Shape Chassis only or for «building in»
Notes Power Supply for Models 333, 353A;
contains also 2nd AF stage.
External source of data Ernst Erb
Source of data Zenith Radio The Early Years 1919-1935
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
