Royal 16 Billfold R16L1 (Japan 506)

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 106749
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / AA: 2 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Royal 16 Billfold R16L1 - Zenith Radio Corp.; Chicago,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 85 x 135 x 35 mm / 3.3 x 5.3 x 1.4 inch
  • Notes
  • Zenith R16L1 Transistor Radio.

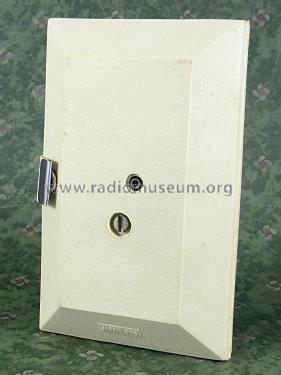

    • Billfold design: open the billfold to turn on/off/volume & tune; leave billfold open to play, or close billfold and radio will be heard through the perforated cover.
    • Billfold cover badges are different between earlier and later models.
    • Cases came in ebony (Y), dark brown (J), beige (L), and yellow (P).
    • Speaker grills were plain or had flower patterns.
    • Some later models used TO-92 plastic/epoxy transistors.
    • 75 hours of playing time with fresh batteries.
    • Earlier models were made in Japan, later models in Korea.

    Made in Japan 506

  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Mentioned in
  • -- Schematic
  • Literature/Schematics (1)
  • -- Original prospect or advert (Chicago Tribune, Dec. 15, 1968, ad "New...Royal 16..$12.95".)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
