Royal 200 7AT48Z

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1958

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
72381

- alternative name: Chicago Radio Lab

Schematics

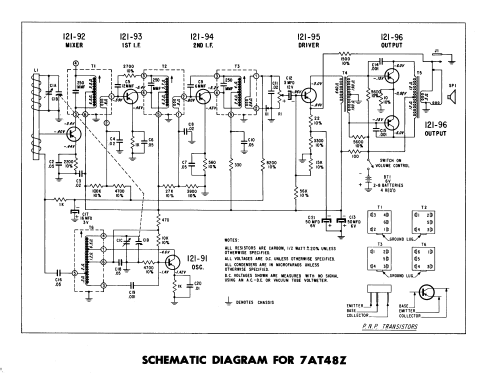

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 61575) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (3)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 61576) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (3)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 61577) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (3)

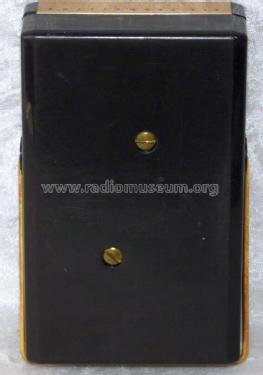

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 61578) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (3)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 60941) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (3)

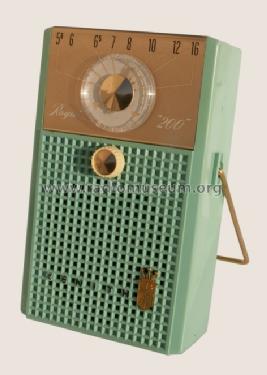

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 402861) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)
USA_Zenith Royal 200_ from my collection

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 402868) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)
USA_Zenith Royal 200_from my collection [3]

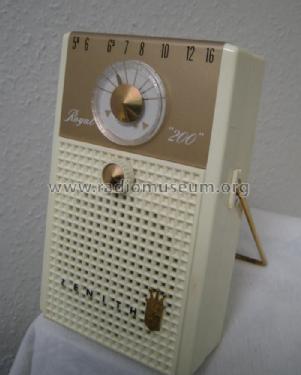

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 730136) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

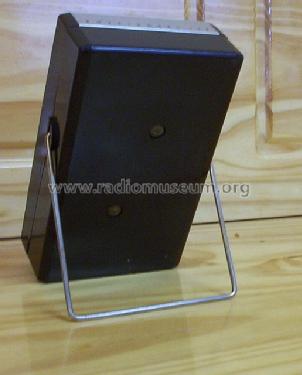

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175307) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: susiea59 (USA).

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 111854) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)

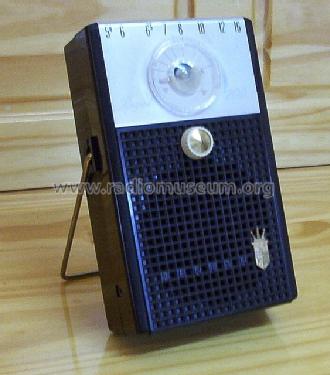

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175305) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: susiea59 (USA)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175925) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: kitschcorral (USA)

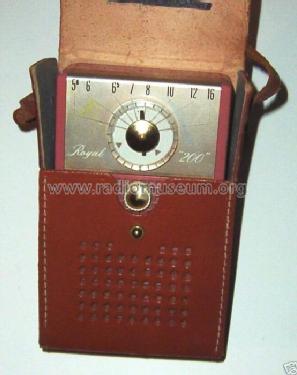

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175926) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: kitschcorral (USA).

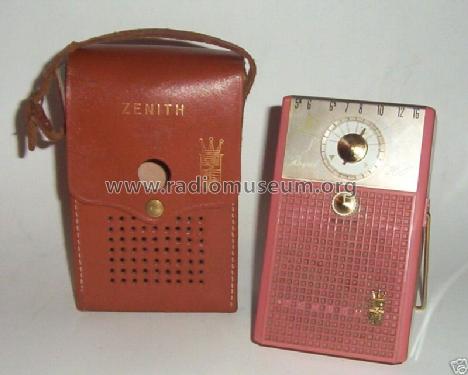

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175927) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: kitschcorral (USA)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175928) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: kitschcorral (USA).

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 175929) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
copy from eBay seller: kitschcorral (USA).

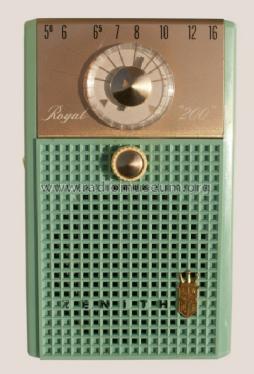

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 402866) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)
USA_Zenith Royal 200_from my collection [2]

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 402873) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)
USA_Zenith 200_from my collection [4]

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 402884) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)
USA_Zenith Royal 200_from my collection [5]

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 730137) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 730138) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 1899394) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 1899395) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 1899396) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2388805) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2692259) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (1)

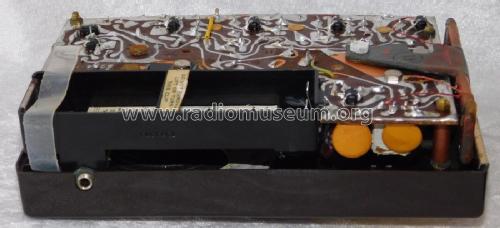

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818196) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

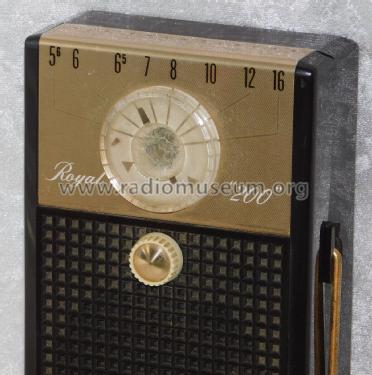

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818197) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818199) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818200) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818201) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818202) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818203) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818204) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Royal 200 7AT48Z; Zenith Radio Corp.; (ID = 2818205) Radio — Zenith Radio Corp.; Royal 200 7AT48Z (2)
eBay-Artikelnr.:295321767274

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
7

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / AA : 4 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Royal 200 7AT48Z - Zenith Radio Corp.; Chicago,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
102 x 166 x 45 mm / 4 x 6.5 x 1.8 inch

Notes
Available in brown, white, coral or green. Also chassis 7AT48Z2 & 7AT48Z4. Sold in Germany for 280 DM (= 67 USD).

Net weight (2.2 lb = 1 kg)
0.7 kg / 1 lb 8.7 oz (1.542 lb)

Price in first year of sale
45.00 $

Source of data
Beitman Radio Diagrams, Vol. 19, 1959

Author
Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
