Royal 300F Ch= 7AT42

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 165847
    • alternative name: Chicago Radio Lab

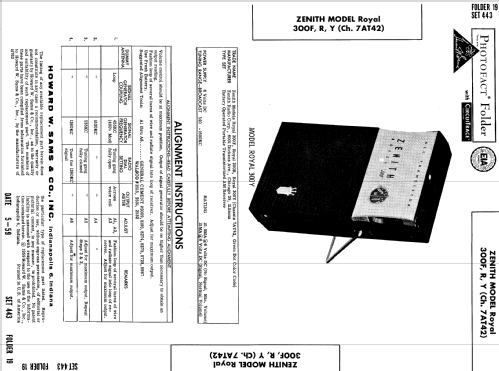

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Royal 300F Ch= 7AT42 - Zenith Radio Corp.; Chicago,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • Color is pine frost green. The Zenith Model Royal 300F is a Battery Operated Vertical Shirtpocket AM-Transistor.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
