Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2

Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 771796) Radio

Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 771797) Radio
Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869763) Radio Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869757) Radio
Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869758) Radio Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869759) Radio
Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869760) Radio Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869762) Radio
Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869761) Radio Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 1804644) Radio
Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 1804645) Radio Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 2579469) Radio
Use red slider bar for more.
Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2; Zenith Radio Corp.; (ID = 869763) Radio
Zenith Radio Corp.;: Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2 [Radio] ID = 869763 391x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2, Zenith Radio Corp.; Chicago, IL:
Zenith Royal model 500YE1 with courtesy by Jon Eggleston.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2N1632 2N1526 2N1524 2N1524 2N1524 2N406 2N408 2N408
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Royal 500YE1 Pocket Radio 500YE1 Ch=8KT40Z2 - Zenith Radio Corp.; Chicago,
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Same chassis (8KT40Z2) fitted to Royal models 285F, 285J, 285W, 285Y, 500WE1, & 500YE1.
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

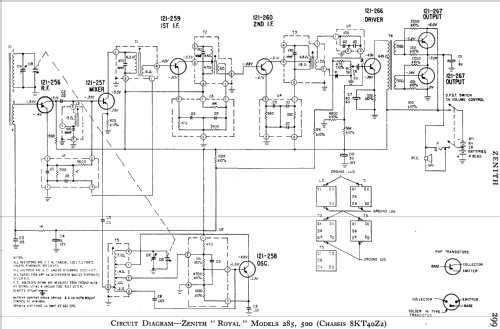

Literature/Schematics (1) -- Schematic

Model page created by Keith Staines. See "Data change" for further contributors.
