Royal 750L Ch= 8AT41Z12

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 61685) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 61686) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 61687) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 61688) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 60992) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 636977) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 636978) Radio

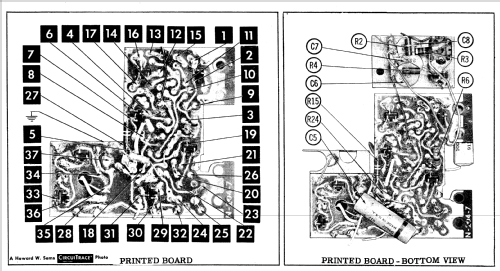

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 636979) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 636980) Radio

Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 636981) Radio
Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 296216) Radio Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 615500) Radio
Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 636976) Radio
Use red slider bar for more.
Royal 750L Ch= 8AT41Z12; Zenith Radio Corp.; (ID = 296216) Radio
Zenith Radio Corp.;: Royal 750L Ch= 8AT41Z12 [Radio] ID = 296216 848x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Royal 750L Ch= 8AT41Z12, Zenith Radio Corp.; Chicago, IL:
Image with courtesy by G.Ball /.garysradios.com

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2N544 2N411 2N409 2N409 2N409 2N407 2N407 2N407
Main principle ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Royal 750L Ch= 8AT41Z12 - Zenith Radio Corp.; Chicago,
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes The Zenith Model Royal 750L is a Battery operated Transitorized Portable AM Receiver.
Source of data Beitman Radio Diagrams, Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-59, Set 438, Folder 17)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
