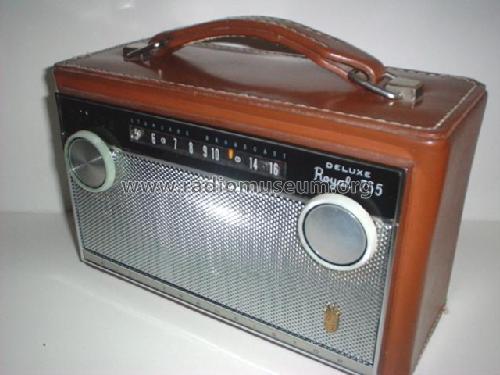

Royal 755LG De Luxe Ch= 8CT41

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79140
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.275 W (undistorted)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Royal 755LG De Luxe Ch= 8CT41 - Zenith Radio Corp.; Chicago,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9 x 5.5 x 4 inch / 229 x 140 x 102 mm
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.
