Royal 755 (general) Ch= 8CT41Z2

Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 61064) Radio

Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 61065) Radio

Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 61066) Radio

Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 61067) Radio
Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1366404) Radio Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1610563) Radio

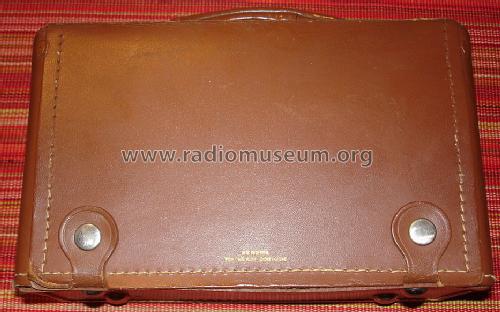

Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1490754) Radio Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1490755) Radio
Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1490756) Radio Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1610559) Radio
Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1610561) Radio Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1610564) Radio
Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1610565) Radio Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1610566) Radio
Use red slider bar for more.
Royal 755 Ch= 8CT41Z2; Zenith Radio Corp.; (ID = 1366404) Radio
Zenith Radio Corp.;: Royal 755 Ch= 8CT41Z2 [Radio] ID = 1366404 933x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Royal 755 (general) Ch= 8CT41Z2, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.275 W (undistorted)
from Radiomuseum.org Model: Royal 755 Ch= 8CT41Z2 - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9 x 5.5 x 4 inch / 229 x 140 x 102 mm
Notes Beitman doesnt mention a suffix to 755. That means it can apply to several models using this chassis. Chassis 8CT41 and 8CT41Z2 are virtually identical except different transistors and a few other parts.
External source of data Konrad Birkner
Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Mentioned in The Portable Radio in American Life

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
