• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74042

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6x1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

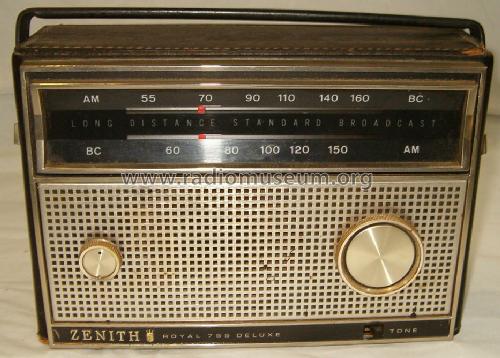

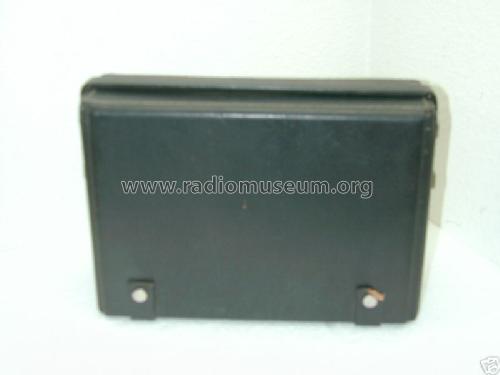

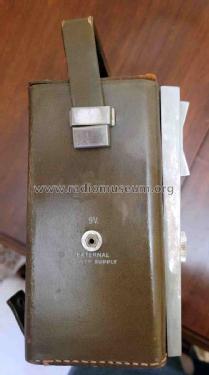

• Model: Royal 755 De Luxe Long Distance Ch= 8MT41Z2 - Zenith Radio Corp.; Chicago,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 6.7 x 3.5 inch / 254 x 170 x 89 mm

• Notes
• genuine leather case, beige or black;

• Price in first year of sale
• 50.00 $

• Mentioned in
• Zenith Transistor Radios

• Literature/Schematics (1)
• Beitman Radio Diagrams Vol. 26, 1966

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
