Royal 755LK Deluxe Ch= 8KT41Z2
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129245
-
- alternative name: Chicago Radio Lab
eBay item number:181316892666
Ebay User courier73 Item 260994916824
Ebay User courier73 Item 260994916824
Ebay User courier73 Item 260994916824
eBay item number:181316892666
eBay item number:181316892666
eBay item number:181316892666
eBay item number:181316892666
eBay item number:181316892666
eBay item number:181316892666
eBay item number:181316892666
eBay item number:181316892666
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / C: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Royal 755LK Deluxe Ch= 8KT41Z2 - Zenith Radio Corp.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 228 x 142 x 110 mm / 9 x 5.6 x 4.3 inch
- Notes
-
Battery saver switch.

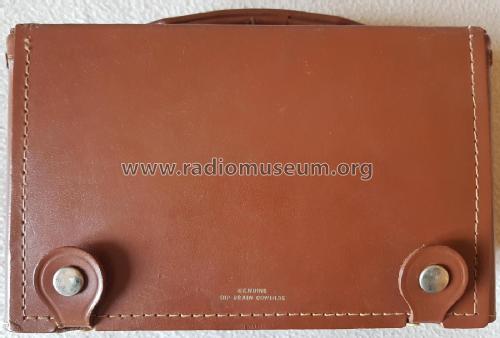

The cabinet is made of 4 mm solid Top Grain Cowhide leather, padded with cardboard on the inside.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Mentioned in
- Zenith Transistor Radios
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
