Royal 760 Navigator Ch= 8AT42Z2

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 702441) Radio

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 702443) Radio

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 702444) Radio

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 702445) Radio

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 702446) Radio

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 702447) Radio
Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764591) Radio Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764593) Radio
Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764600) Radio Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764595) Radio
Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764601) Radio Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764592) Radio
Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764594) Radio Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764598) Radio
Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764597) Radio Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764596) Radio
Use red slider bar for more.

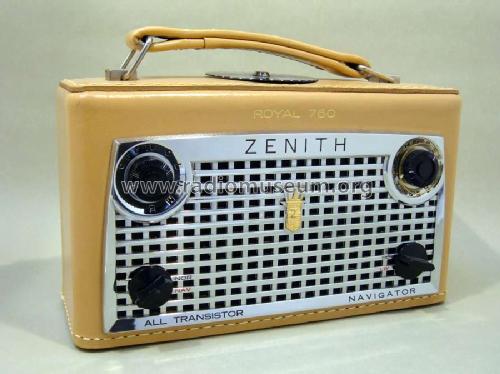

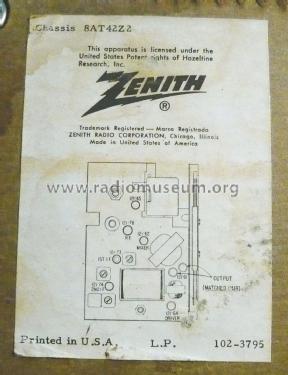

Royal 760 Navigator Ch= 8AT42Z2; Zenith Radio Corp.; (ID = 764591) Radio
Zenith Radio Corp.;: Royal 760 Navigator Ch= 8AT42Z2 [Radio] ID = 764591 900x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model Royal 760 Navigator Ch= 8AT42Z2, Zenith Radio Corp.; Chicago, IL:
Zenith Royal 760 with courtesy by Gary Ball.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner

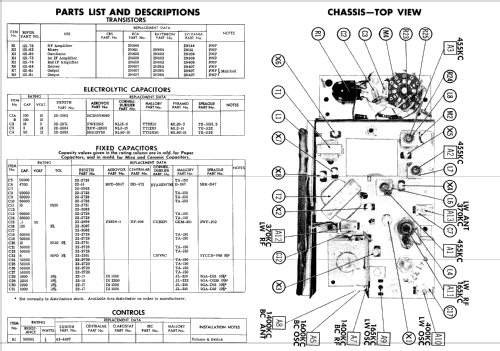

Semiconductors (the count is only for transistors) 8: 2N544 2N411 2N409 2N409 2N409 2N407 2N407 2N407
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / C: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Royal 760 Navigator Ch= 8AT42Z2 - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 130 x 90 mm / 9.1 x 5.1 x 3.5 inch
Notes The Zenith Model Royal 760 is a Battery operated Portable Transistorized AM Receiver.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

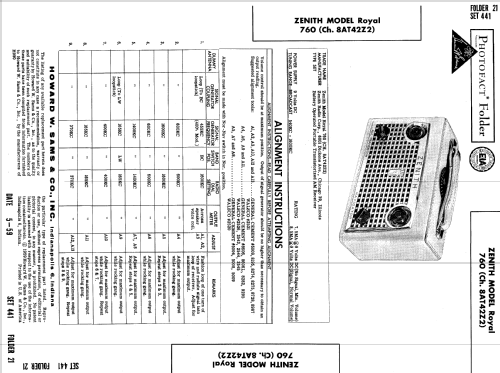

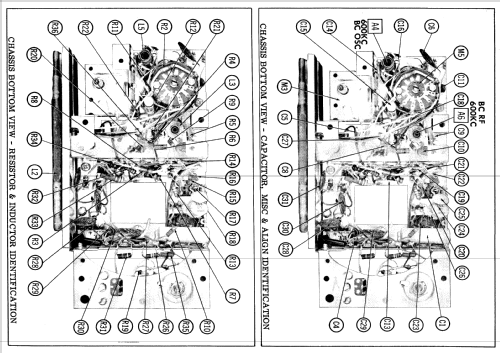

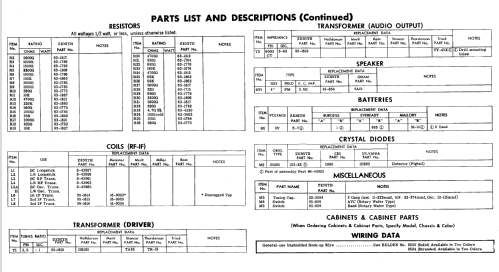

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 441, Folder 21)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
