SF112R Ch= 4B25

SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 186297) R-Player

SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 543989) R-Player

SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 543990) R-Player

SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 543991) R-Player

SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 543993) R-Player
SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 316270) R-Player SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 272392) R-Player
SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 316272) R-Player SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 316273) R-Player
Use red slider bar for more.
SF112R Ch= 4B25; Zenith Radio Corp.; (ID = 316270) R-Player
Zenith Radio Corp.;: SF112R Ch= 4B25 [R-Player] ID = 316270 640x309
Select picture or schematic to display from thumbnails on the right and click for download.
For model SF112R Ch= 4B25, Zenith Radio Corp.; Chicago, IL:

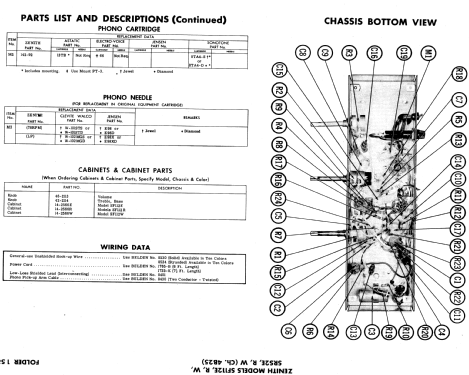

with courtesy by Ross Bennett

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 12AX7 6AQ5A 6AQ5A 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: SF112R Ch= 4B25 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes AC operated stereo phono amplifier with 4 speed automatic record changer.Sams photofact set 477 folder 15 date 3-60 features the Zenith models SF112E, SF112R and SF112W as the same schematic.
Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 477 folder 15 date 3-60)

Model page created by Trev Levick. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
