SFD2515E Ch= 2D30 Ch= 7D30

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1959 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 150299
    • alternative name: Chicago Radio Lab

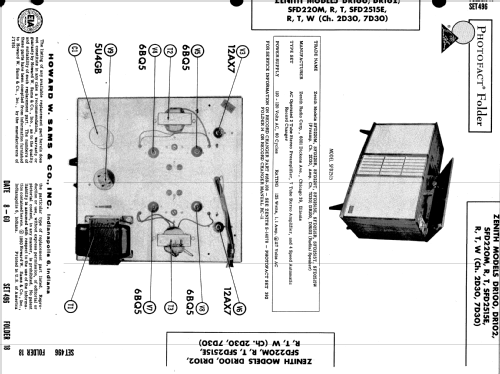

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SFD2515E Ch= 2D30 Ch= 7D30 - Zenith Radio Corp.; Chicago,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • AC operated stereo preamplifier, stereo amplifier and 4 speed automatic record changer. Sams photofact set 496 folder 18 date 8-60 features the Zenith models SFD220M, SFD220R, SFD220T, SFD2515E, SFD2515R, SFD2515T and SFD2515W, all with preamp chassis 2D30 and amp chassis 7D30 as the same schematic.
