Shortwave Magnet Wave Booster

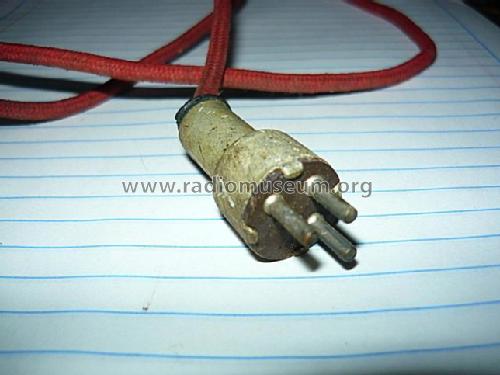

Shortwave Magnet Wave Booster; Zenith Radio Corp.; (ID = 1821250) Misc Shortwave Magnet Wave Booster; Zenith Radio Corp.; (ID = 1759957) Misc
Shortwave Magnet Wave Booster; Zenith Radio Corp.; (ID = 2055407) Misc Shortwave Magnet Wave Booster; Zenith Radio Corp.; (ID = 2055409) Misc
Use red slider bar for more.
Shortwave Magnet Wave Booster; Zenith Radio Corp.; (ID = 1821250) Misc
Zenith Radio Corp.;: Shortwave Magnet Wave Booster [Misc] ID = 1821250 1343x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Shortwave Magnet Wave Booster, Zenith Radio Corp.; Chicago, IL:
.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1942 Category: Miscellaneous (Other, Various) - see notes
Wave bands Short Wave (SW only)
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Shortwave Magnet Wave Booster - Zenith Radio Corp.; Chicago,
Material Various materials
Dimensions (WHD) 220 x 310 x 17 mm / 8.7 x 12.2 x 0.7 inch
Notes

The Zenith Shortwave Magnet ( Wave booster ) is a shortwave antenna used in early Zenith Trans-Oceanic receivers.

Switch for 25m, 19m and 31m

Material of body : laquered cardboard.



Net weight (2.2 lb = 1 kg) 0.150 kg / 0 lb 5.3 oz (0.33 lb)

Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
