Space Command 6 Button with Zoom

Space Command ; Zenith Radio Corp.; (ID = 2048441) Misc Space Command ; Zenith Radio Corp.; (ID = 2048435) Misc
Space Command ; Zenith Radio Corp.; (ID = 2048436) Misc Space Command ; Zenith Radio Corp.; (ID = 2048437) Misc
Space Command ; Zenith Radio Corp.; (ID = 2048438) Misc Space Command ; Zenith Radio Corp.; (ID = 2048439) Misc
Space Command ; Zenith Radio Corp.; (ID = 2048440) Misc Space Command ; Zenith Radio Corp.; (ID = 2048442) Misc
Use red slider bar for more.

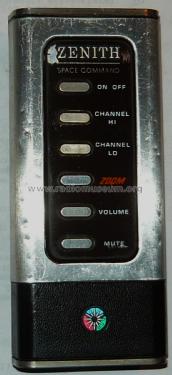

Space Command ; Zenith Radio Corp.; (ID = 2048441) Misc
Zenith Radio Corp.;: Space Command [Misc] ID = 2048441 967x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Space Command 6 Button with Zoom, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1976 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 3: 452_Transistor 452_Transistor 439_Transistor
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Space Command [6 Button with Zoom] - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 145 x 45 mm / 2.6 x 5.7 x 1.8 inch
Notes

6 button remote control, featuring a "ZOOM" function.

Color : brown, with aluminium cover.

For Zenith TV SG2570P

Part number : 124-08-01A

Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)
