T405W Ch=4T41 (5 T 41)

T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 127870) Radio

T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 506438) Radio

T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 506439) Radio

T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 506440) Radio

T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 506441) Radio
T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 287416) Radio T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 710471) Radio
Use red slider bar for more.
T405W Ch=4T41 ; Zenith Radio Corp.; (ID = 287416) Radio
Zenith Radio Corp.;: T405W Ch=4T41 [Radio] ID = 287416 400x300
Select picture or schematic to display from thumbnails on the right and click for download.

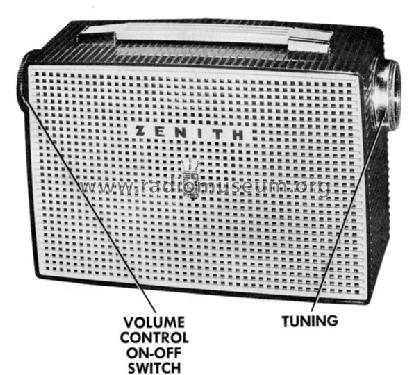

For model T405W Ch=4T41 (5 T 41), Zenith Radio Corp.; Chicago, IL:

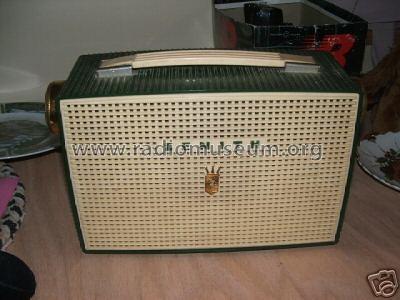

Image with courtesy by Ebayseller bargains-galore-633

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110-120/ 75 & 7.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: T405W Ch=4T41 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Selenium Rectifier;

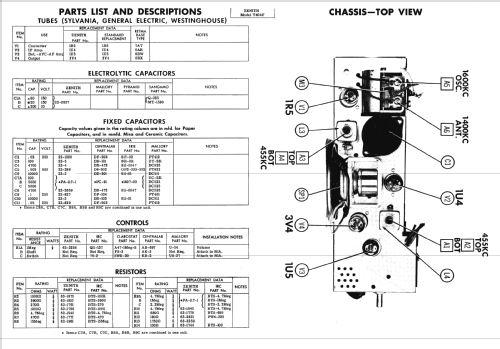

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-55, Set 296, Folder 12)

Model page created by Egon Penker. See "Data change" for further contributors.
