5529WU The Hampden 25MC30

5529WU The Hampden 25MC30; Zenith Radio Corp.; (ID = 1044770) Television 5529WU The Hampden 25MC30; Zenith Radio Corp.; (ID = 1044768) Television
5529WU The Hampden 25MC30; Zenith Radio Corp.; (ID = 1044769) Television
Use red slider bar for more.
5529WU The Hampden 25MC30; Zenith Radio Corp.; (ID = 1044770) Television
Zenith Radio Corp.;: 5529WU The Hampden 25MC30 [Television] ID = 1044770 410x358
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5529WU The Hampden 25MC30, Zenith Radio Corp.; Chicago, IL:

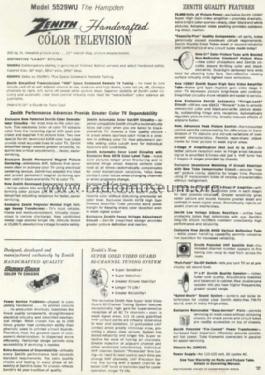

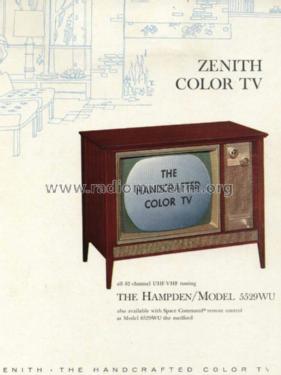

-- Original-Prospect ~1965

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1965 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 6JH8 12GN7 6BA11
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: 5529WU The Hampden 25MC30 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 38 x 30 x 20.5 inch / 965 x 762 x 521 mm
Notes Zenith The Hampden 5529WU, Chassis 25MC30;
21" NTSC colour TV with US standard VHF/UHF 82 channel tuner, Contemporary styling in genuine oil finished Walnut veneers.
As model 6529WU with 400 Space Command remote-control.
Mentioned in -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4273 models, 3899 with images and 3388 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
