5271WU The Hansted 25MC30

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 213824
    • alternative name: Chicago Radio Lab

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 5271WU The Hansted 25MC30 - Zenith Radio Corp.; Chicago,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 38 x 32 x 22 inch / 965 x 813 x 559 mm
  • Notes
  • Zenith The Hansted 5271 WU, Chassis: 25MC30;
    21" NTSC color TV with 82 channel VHF/UHF tuner.
    Danish modern styling with woven wood and panel doors. Brass door pulls.
    With Space Command remote control as >The Hallsberg 6271 WU<.
  • Mentioned in

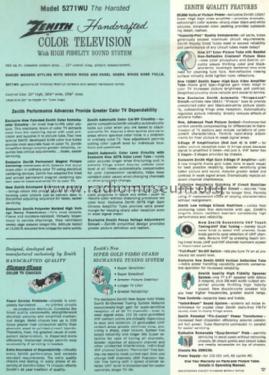

  • -- Original prospect or advert
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
