Trans-Oceanic Royal 7000-1 Ch= 18ZT40
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1970–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 297657
-
- alternative name: Chicago Radio Lab

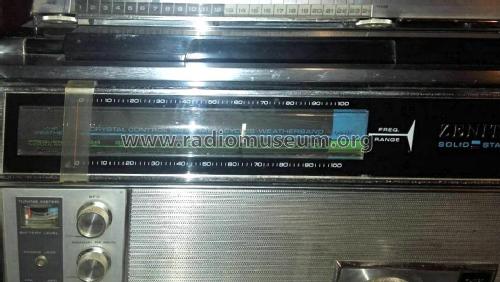

Thanks for photo the First Zala
Zenith Trans-Oceanic Royal 7000-1
- Number of Transistors
- 18
- Semiconductors
- NTE107 NTE107 NTE123AP NTE107 NTE107 NTE107 NTE107 NTE107 NTE107 NTE161 NTE161 NTE123AP NTE161 NTE107 NTE159 NTE123AP NTE123AP NTE159
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 115; 230 / D: 8 x 1.5 & D: 1 x 1.5 V Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Trans-Oceanic Royal 7000-1 Ch= 18ZT40 - Zenith Radio Corp.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 335 x 212 x 142 mm / 13.2 x 8.3 x 5.6 inch
- Notes
-
Zenith transistor numbers in the same order :
121-687 121-687 121-430 121-687 121-687 121-687 121-687 121-687
121-687 121-692 121-692 121-430 121-692 121-687 121-441 121-701
121-678 121-679
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Price in first year of sale
- 270.00 USD
- Mentioned in
- Bryant/Cones: Trans-Oceanic
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
