Trans-Oceanic Royal 7000 Ch= 18ZT40Z3

Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 456065) Radio

Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 456066) Radio
Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 275990) Radio Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 601087) Radio
Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 588504) Radio Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 576788) Radio
Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 658376) Radio Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 658379) Radio
Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 658381) Radio Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 658382) Radio
Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 658384) Radio Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 658385) Radio
Use red slider bar for more.
Trans-Oceanic Royal 7000 Ch= 18ZT40Z3; Zenith Radio Corp.; (ID = 275990) Radio

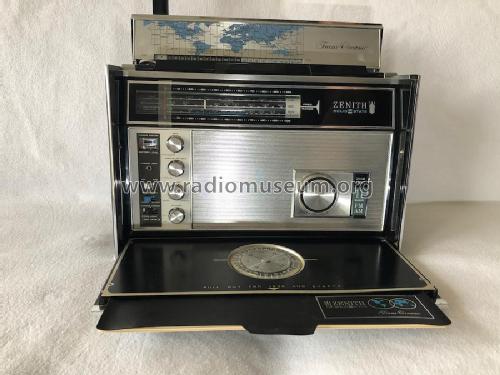

Zenith Radio Corp.;: Trans-Oceanic Royal 7000 Ch= 18ZT40Z3 [Radio] ID = 275990 500x485
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trans-Oceanic Royal 7000 Ch= 18ZT40Z3, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18: NTE161 NTE161 NTE161 NTE107 NTE107 NTE107 NTE107 NTE107 NTE107 NTE107 NTE123AP NTE123AP NTE123AP NTE107 NTE107 NTE123AP NTE123AP NTE159
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 115; 230 / D: 8 x 1.5 & D:1 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Trans-Oceanic Royal 7000 Ch= 18ZT40Z3 - Zenith Radio Corp.; Chicago,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 335 x 212 x 142 mm / 13.2 x 8.3 x 5.6 inch
Notes

BC/LW/FM/7xSW/+fixed crystal VHF(weather at 162.55 Mc); See also the article here.
Siehe auch den Artikel hier.
Si veda anche l'articolo in questa pagina.

Zenith transistor numbers in the same order :

121-692 121-692 121-692 121-687 121-687 121-687 121-687 121-687
121-687 121-687 121-430 121-430 121-701 121-687 121-687 121-430
121-678 121-679

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 270.00 $
External source of data Bryant/Cones
Literature/Schematics (1) -- Schematic

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4254 models, 3876 with images and 3371 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Zenith Radio Corp.;: Trans-Oceanic Royal 7000 Ch= 18ZT40Z3
Threads: 1 | Posts: 5
Hits: 830     Replies: 4
zenith: skala and map lamps
Sandor Selyem-Tóth
19.Jan.18
  1

Dear colleagues, would somebody tell you how many volumes and how high the scale and map lamp? There was no value in the documentation. I can see that the three lamps are the same.

Volt and Amper or W?

BR,



STS

Attachments

Sandor Selyem-Tóth
20.Jan.18
  2

Goal, attache photo.

BR,



STS

Attachments

Daniel Consales
20.Jan.18
  3

Hello Mr. Selyem-Tóth,

at least one of the bulbs shown on your photo (the left one) does not look defective ...

So perhaps you did not replace the 1.5V battery - or a problem with the switch ?

regards,

Daniel Consales



Sandor Selyem-Tóth
20.Jan.18
  4

Hi Daniel!

Thanks, but here was only a question of defining a replacement type.

BR,

          STS

Sandor Selyem-Tóth
22.Jan.18
  5

Scale lamp replacement

Attachments


Zenith Radio Corp.;: Trans-Oceanic Royal 7000 Ch= 18ZT40Z3
End of forum contributions about this model
