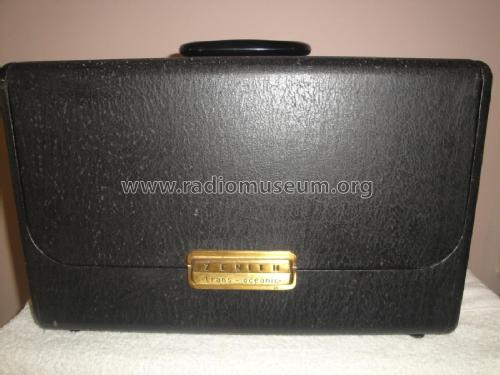

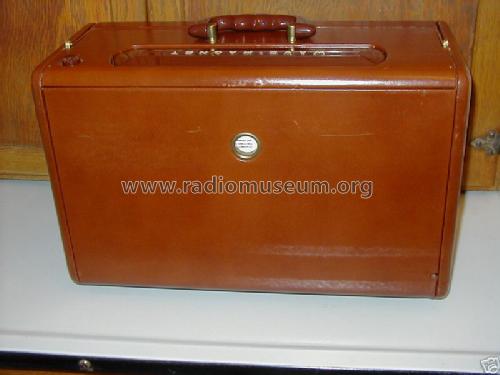

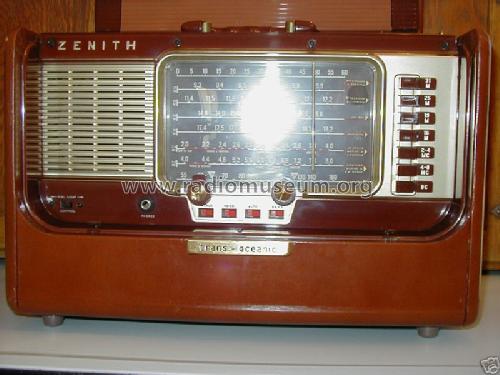

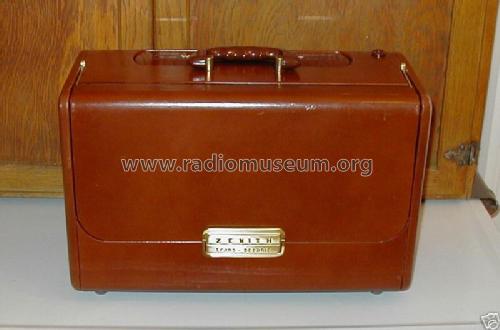

Trans-Oceanic (TransOceanic) Y600 Ch= 6T41Z brown leather

Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 2452388) Radio Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 141524) Radio
Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 141527) Radio Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 141525) Radio
Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 141526) Radio Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 141528) Radio
Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 141529) Radio Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 1462941) Radio
Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 1462943) Radio Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 1462944) Radio
Use red slider bar for more.
Trans-Oceanic Y600 Ch= 6T41Z; Zenith Radio Corp.; (ID = 2452388) Radio
Zenith Radio Corp.;: Trans-Oceanic Y600 Ch= 6T41Z [Radio] ID = 2452388 1400x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trans-Oceanic (TransOceanic) Y600 Ch= 6T41Z brown leather, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1U4 1L6 1U4 1U5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz

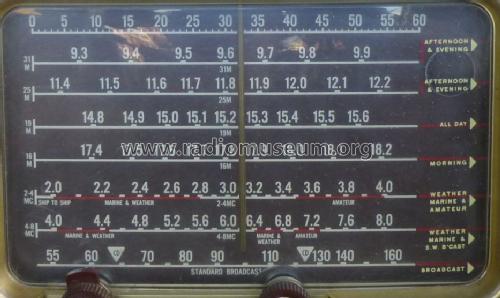

Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 9 & 90; 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Trans-Oceanic Y600 Ch= 6T41Z [brown leather] - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 17 x 11 x 8 inch / 432 x 279 x 203 mm
Notes Bryant/Cones; BC/6xSW; See also the article here.
Siehe auch den Artikel hier.
Si veda anche l'articolo in questa pagina.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 160.00 $
Collectors' prices
External source of data Konrad Birkner

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4155 models, 3607 with images and 3261 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
