Trans-Oceanic (TransOceanic) 8G005 Generic Model

Trans-Oceanic 8G005 Generic Model; Zenith Radio Corp.; (ID = 1371379) Radio Trans-Oceanic 8G005 Generic Model; Zenith Radio Corp.; (ID = 1958631) Radio
Use red slider bar for more.

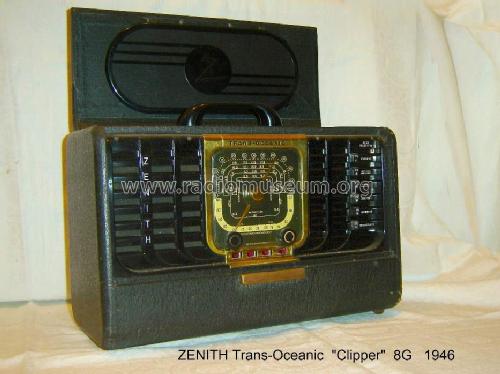

Trans-Oceanic 8G005 Generic Model; Zenith Radio Corp.; (ID = 1371379) Radio
Zenith Radio Corp.;: Trans-Oceanic 8G005 Generic Model [Radio] ID = 1371379 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trans-Oceanic (TransOceanic) 8G005 Generic Model, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1946–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8:
Main principle Superhet with RF-stage
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Trans-Oceanic 8G005 Generic Model - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes General Information
Please dont upload model specific images or info here.
See specific models of this family.

Suffixes to the common name 8G005 like Y, T Z etc are often not mentioned. The worst case is the log. It came in different issues according to the model updates. These are correctly reflected inside (e.g. the tube complement). But the front page for any issue displays only 8G005, nothing else.
The models differ in tube line up (oscillator/mixer, rectifier), and Waveband coverage (49 m band).
Suffix "B" indicates a separate subchassis for the voltage selection switch, located above variable condenser and tuning tower.
Mentioned in Bryant/Cones: the Zenith TransOceanic

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
